Wireless transmitter and receiver set
Send UHD 4K30 video up to 1300′ in resolution.
HDMI/SDI Inputs and Outputs
2.4 and 5 GHz Frequency Bands
Supports UVC and RTMP for streaming
650′ Transmission in Broadcast Mode
Smart Channel Scanning, Bright LCD
The system features a low 50 ms latency and a 12 MB/s bit rate.
DC, L-Series, and USB-C Power Options

Hollyland PYRO S Overview

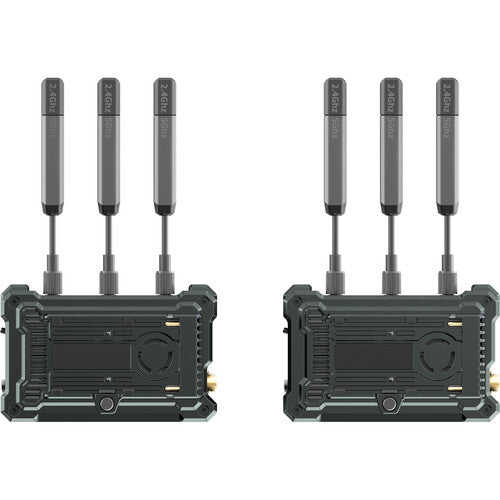

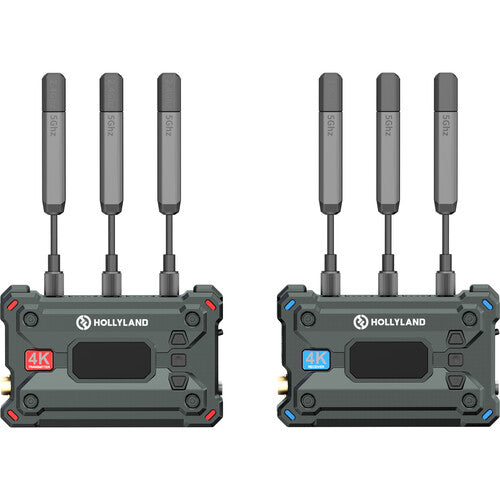

Elevate your production with the Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System’s 4K30 wireless video transmission. This versatile package includes a wireless transmitter and receiver, seven antennas, a USB-C adapter, a DC power adapter, and a shoe adapter mount. The transmitter supports both HDMI and SDI inputs, and it delivers low-latency (50 ms) video up to 1300′ in line-of-sight to the receiver. In broadcast mode, the system can transmit to up to four receivers and two mobile devices within a 650′ range. The receiver outputs both HDMI and SDI.

Each Pyro S unit features a USB-C port that supports both power delivery and plug-and-play UVC functionality, allowing simple connection to computers for streaming and conferencing. A built-in frequency scanner ensures optimal transmission by selecting the clearest available frequency and displaying the configuration on a bright LCD screen. You can power the units using USB-C, an optional L-series battery plate, or a separately available locking DC adapter.

Long-Distance, High-Quality Transmission

With advanced Wi-Fi broadcast technology, the Pyro S can connect to up to four receivers, providing flexibility for on-set monitoring. In broadcast mode, it transmits up to 650′ with multiple receivers and up to 1300′ without broadcast mode. The system ensures stable signal transmission with minimal latency, outperforming the Mars series by preserving image quality and low latency over long distances.

Exceptional Signal and Image Quality

At 1300′ transmission range, the Pyro S maintains as low as 50 ms latency. It offers two user-selectable modes: HD mode for superior image quality (up to 12 Mb/s bitrate) and Smooth mode for lower latency. Capable of 4K30 transmission via HDMI and 1080p60 via SDI, the system delivers sharp, detailed, and realistic visuals for professional-grade production.

USB Video Class (UVC) Support

The Pyro S includes UVC support for seamless integration with a variety of devices, such as computers, without the need for additional drivers or software. This plug-and-play functionality is ideal for live streaming, video conferencing, and more.

RTMP Streaming

Stream directly to live platforms like Zoom, YouTube, Twitch, or TikTok by inputting your wireless key and connecting a network card, enabling instant video broadcast.

Smart channel scanning

The Pyro S automatically selects the optimal frequency at startup, providing a smooth user experience. The receiver also offers real-time frequency feedback through smart channel scanning to ensure a stable and uninterrupted connection.

Pairing and Setup are easy.

The system supports preset grouping and pairing, simplifying the transmitter and receiver setup process and saving time for the user.

Multiple power options for continuous operation

The Pyro S offers flexibility in power sources, supporting DC input, NP-F batteries, and USB-C power supply (5-12V). This USB power option is especially convenient for stabilizer use, reducing the need for bulky NP-F batteries, which enhances mobility and ease of use.

With its robust performance, flexibility, and ease of use, the Pyro S is an ideal solution for professional filmmakers and broadcasters seeking high-quality, long-distance wireless video transmission.

FAQs for the Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System

1. What is the Pyro S system’s maximum transmission range?

The Pyro S system can transmit video up to 1300 feet in line of sight. Transmission to four receivers and two mobile devices in broadcast mode reduces the range to 650 feet.

2. What video resolutions does Pyro S support?

The Pyro S supports 4K30 transmission via HDMI and 1080p60 via SDI, ensuring high-quality video output for professional applications.

3. How many receivers can a single transmitter connect to?

In standard mode, the transmitter can connect to two receivers and two mobile devices. In broadcast mode, it can connect to up to four receivers simultaneously.

4. What is the system’s latency?

The Pyro S provides an extremely low latency of 50 ms, which ensures smooth video transmission, making it ideal for real-time applications such as live streaming and broadcasting.

5. Can you use the Pyro S to stream live?

Yes, the Pyro S supports RTMP streaming, allowing you to stream directly to platforms such as Zoom, YouTube, Twitch, and TikTok by inputting your wireless key and connecting to a network.

6. What power options are available for the Pyro S?

You can power the Pyro S using a USB-C port, DC input, or NP-F batteries. The USB-C option is convenient for setups like stabilizers, reducing the need for bulkier batteries.

7. Does the Pyro S system support plug-and-play functionality?

Yes, the Pyro S features UVC (USB Video Class), allowing for seamless plug-and-play operation with computers and other devices without requiring additional drivers or software.

8. What is broadcast mode, and when should I use it?

Broadcast mode allows the transmitter to send signals to up to four receivers at a reduced range of 650 feet. When the set requires multiple monitoring devices, this mode proves to be ideal. Turning off broadcast mode allows the transmitter to connect to two receivers and two mobile devices, providing a longer range of 1300 feet.

9. How does the Pyro S ensure a stable connection?

The system includes a smart channel scanning feature that automatically selects the best frequency upon startup. Users can also manually scan channels in real-time to avoid interference and ensure a reliable connection.

10. What kind of devices can the Pyro S connect to via USB-C?

The USB-C port allows for UVC operation, which means you can connect the Pyro S to devices like computers for live streaming, conferencing, or other video transmission applications without any additional software or drivers.

11. What are the image modes available, and how do they affect video quality?

The Pyro S offers two modes:

• HD Mode prioritizes higher image quality, with a bitrate of up to 12 MB/s.
• Smooth Mode: Optimizes latency for a smoother video experience.

Is pairing the Pyro S system easy?

Yes, the Pyro S supports preset grouping and pairing, making the setup quick and hassle-free without needing to manually adjust settings each time.

13. Is the Pyro S compatible with mobile devices?

Yes, in standard mode, the transmitter can connect to two mobile devices alongside two receivers, allowing flexibility in monitoring.

14. Does the Hollyland Pyro S support both HDMI and SDI inputs?

Yes, the transmitter supports both HDMI and SDI inputs, while the receiver outputs to both HDMI and SDI, giving you flexibility depending on your production needs.

15. What type of battery is compatible with the Hollyland Pyro S?

The Pyro S supports NP-F series batteries for portable power, as well as other options such as USB-C and DC power inputs.
